From closed-cell foam removal to a complete tiled roof
This project combined two related jobs: removing closed-cell spray foam from the roof area and replacing the existing covering with a conventional, maintainable tiled roof system.
Closed-cell foam is rigid and can bond firmly to roof materials. On this property, the agreed approach was a complete strip and re-roof rather than trying to rebuild around the foam-covered roof build-up.
Surrey
Closed-cell foam removal and re-roof
2026
Redland 49 with dry-fix details and ventilation
The Project Brief
The aim was to remove the closed-cell spray foam, expose the roof for inspection and replace the ageing covering with a properly detailed pitched roof system.
The new specification followed our usual re-roof build-up: breathable membrane, treated battens, Redland 49 concrete interlocking tiles, mechanically fixed ridge and verge details, and ventilation at the eaves.
Work Completed
- Stripped the existing roof covering, battens and underlay as part of the foam-removal work.
- Removed the closed-cell spray foam from the roof area and inspected the exposed roof build-up.
- Installed new breathable roofing membrane and treated battens at the correct gauge.
- Laid Redland 49 concrete interlocking tiles across the pitched roof.
- Installed a mechanically fixed dry ridge system.
- Completed the roof edges with dry-verge detailing.
- Added ventilation at the eaves to support airflow through the roof space.
- Detailed the chimney junctions to suit the new tile covering.
Materials and Features
Before and After

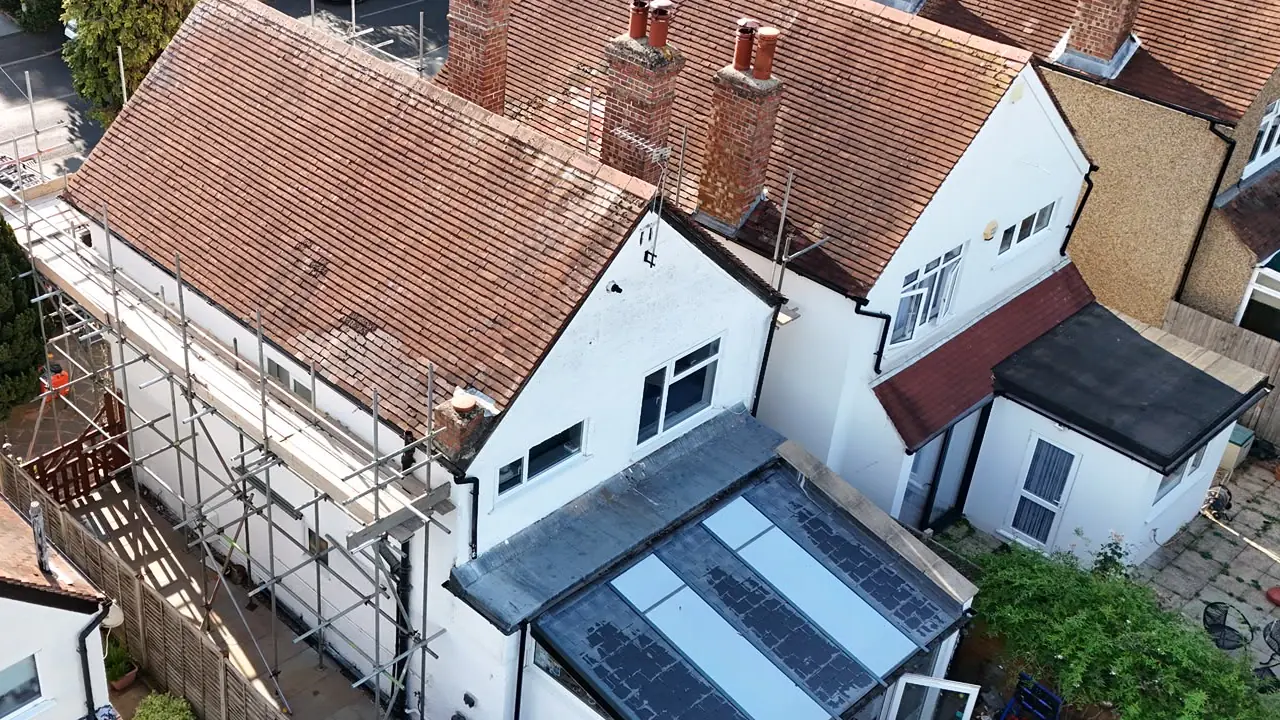

Before the Re-Roof
The existing plain-tile covering was stripped so the closed-cell foam could be removed and the roof beneath assessed.

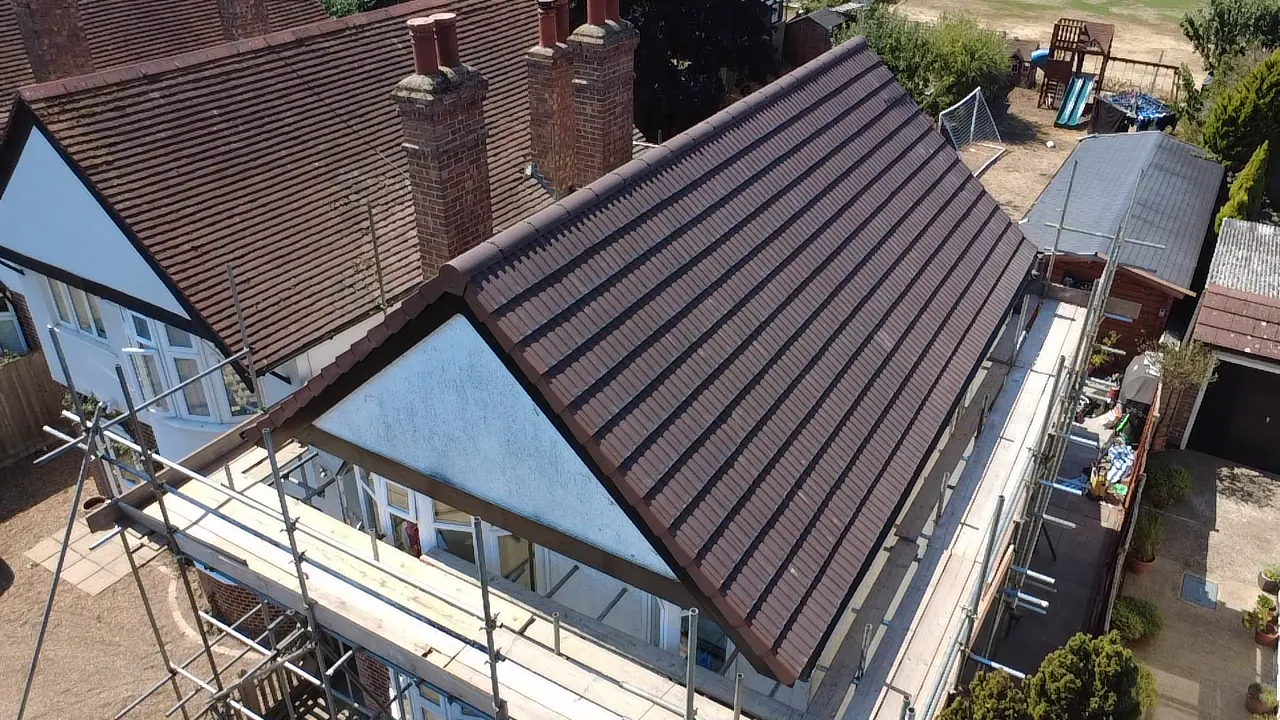

Completed Roof
The new Redland 49 covering gives the property a clean, consistent finish with mechanically fixed ridge and verge details.

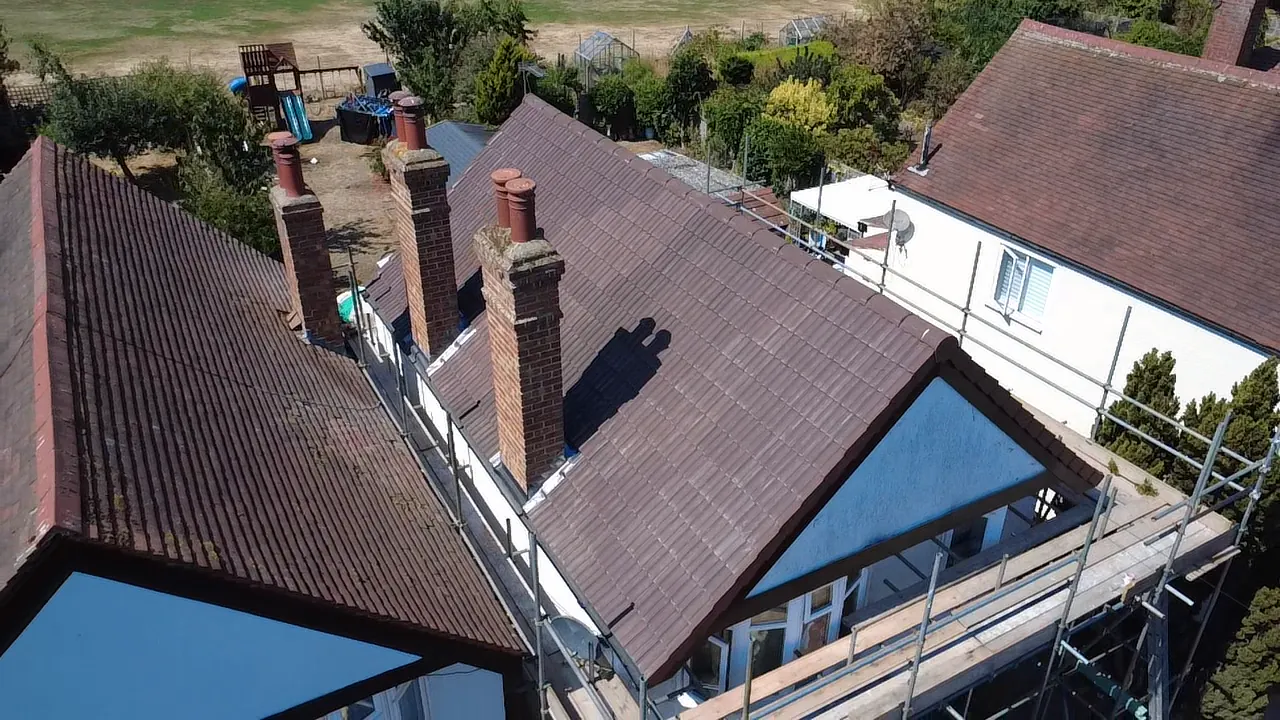

Dry-Fix and Ventilation Details
The completed system includes dry ridge, dry verge and ventilation at the eaves, with the chimney junctions detailed around the new covering.
Finished Result
The finished roof has a uniform Redland 49 tile covering, mechanically fixed ridge and verge details, new eaves ventilation and clear access to the roof structure for future inspection and maintenance.
This project shows one possible outcome after closed-cell foam removal. It does not mean every foam-covered roof needs replacing: the sensible scope depends on the foam, the existing roof and what can be retained safely after removal.
